Pocket Passage Pull
Barrier-Free (ADA Compliant)

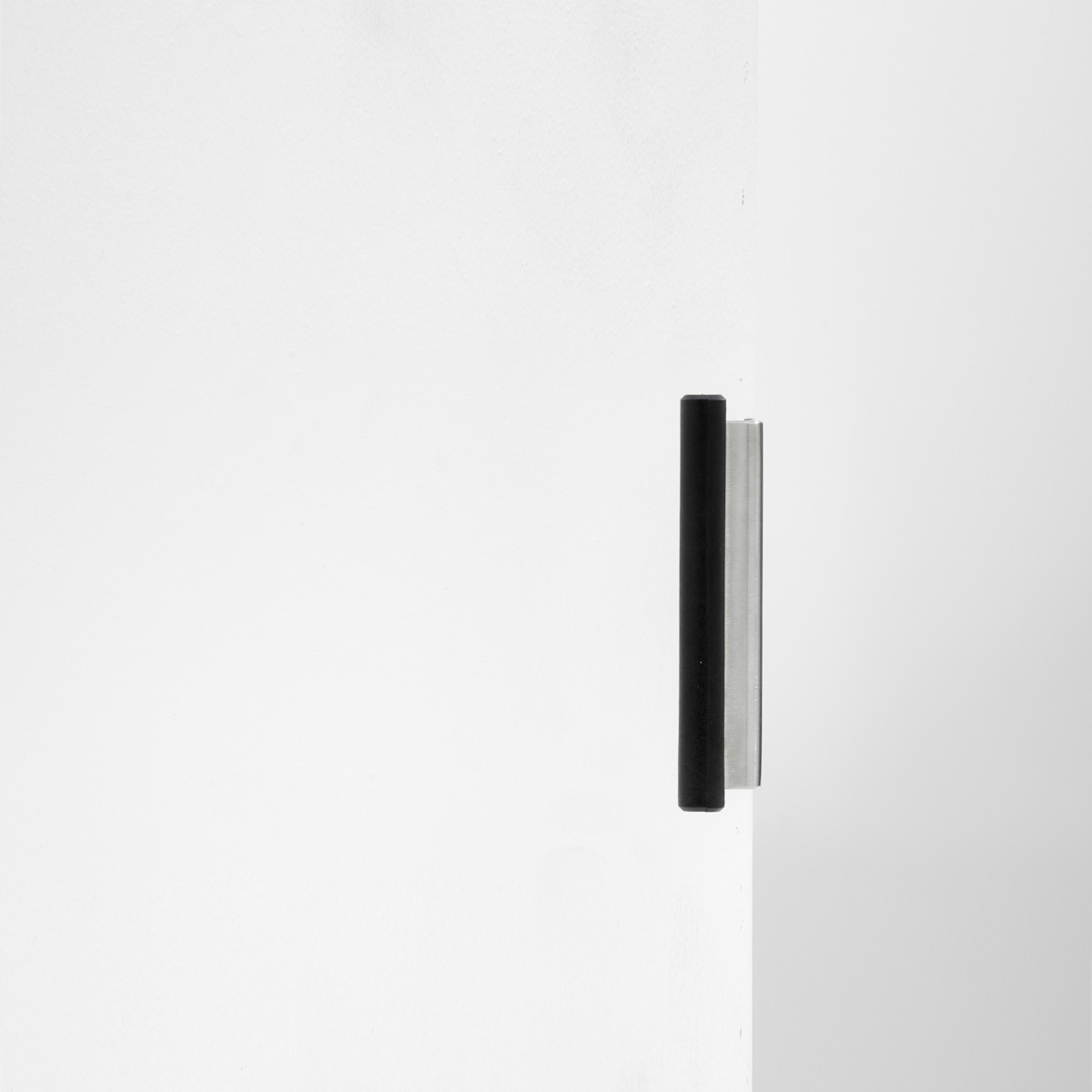

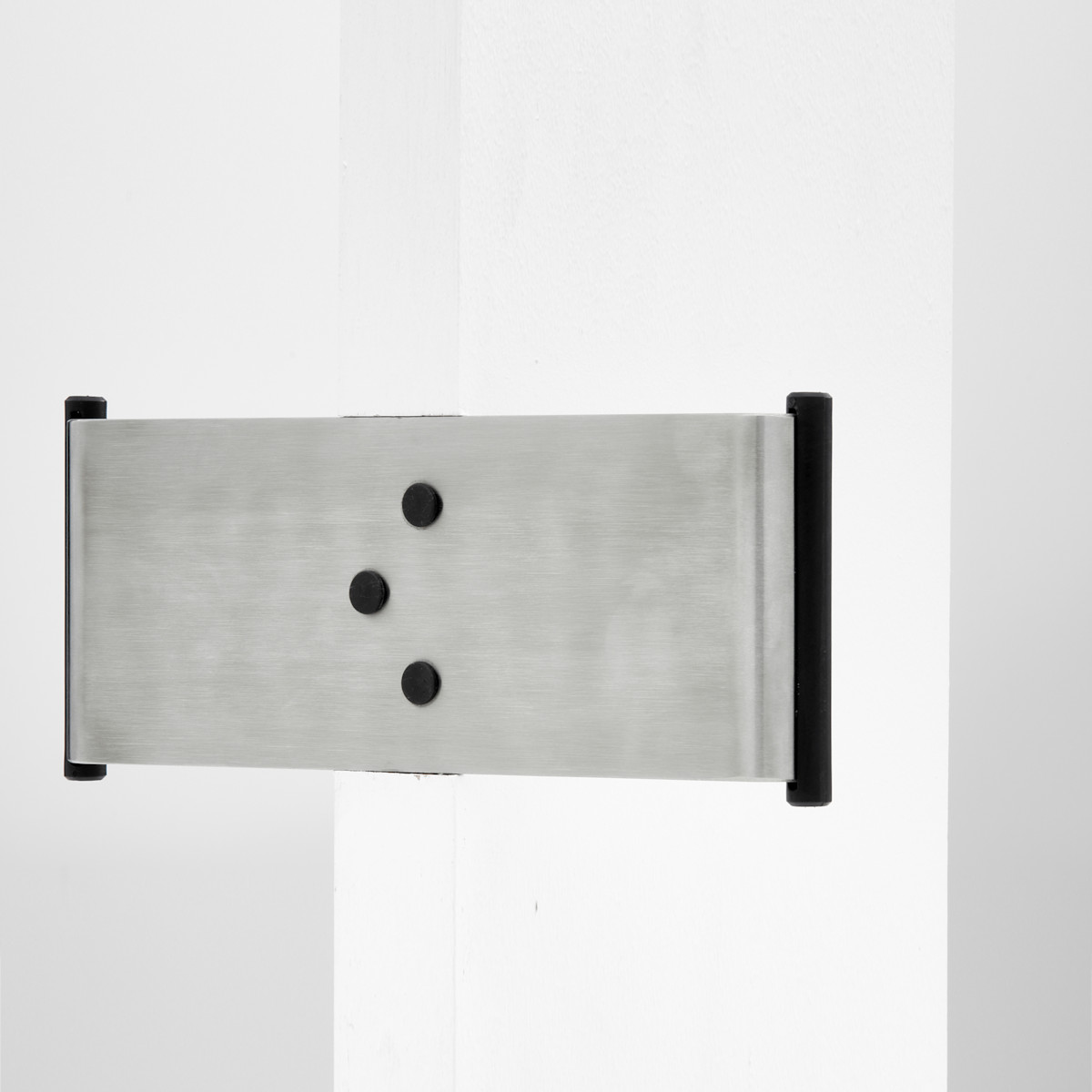

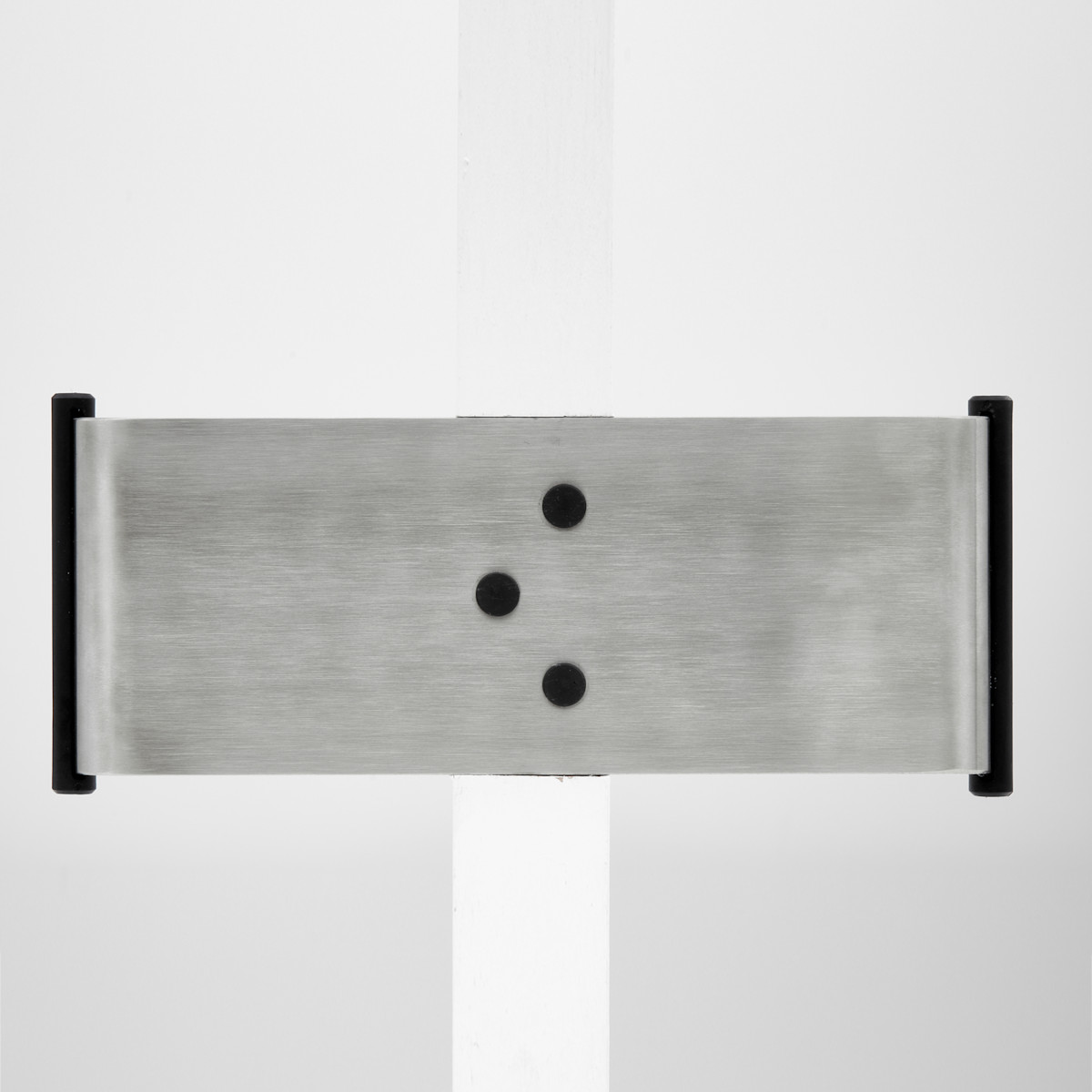

The C-50P Passage Set is a comprehensive barrier-free solution designed to meet ADA compliance standards for pocket doors. This passage set ensures the door fully retracts into the pocket, with handles extending on both sides for universal accessibility. The set comes complete with modern black nylon handles. Crafted specifically for wooden doors, it's offered in flat black or satin stainless steel, with the option for custom finishing available.
Frame Thickness: 4 3/4 in [120.6 mm] to 10 in [254 mm]
Door Thickness: 1 3/8 in [34.9 mm] to 1 3/4 in [44.5 mm]
Included Components: one C-50P Passage Pull
C-50P-A x ( )
For 4 3/4 in [120.7 mm] to 5 1/2 in [139.7 mm] frame thickness
C-50P-B x ( )
For 5 3/4 in [146.1 mm] to 7 in [177.8 mm] frame thickness
C-50P-C x ( )
For 7 1/4 in [184.2 mm] to 8 1/2 in [215.9 mm] frame thickness
C-50P-D x ( )
For 8 3/4 in [222.3 mm] to 10 in [254 mm] frame thickness
( ) = finish
