This heavy-duty, single-extrusion bypass system is designed to support doors weighing up to 150 lbs. [68 kg] each. Equipped with quick release hangers, it enables leveling and height adjustment by one person. Enhanced with nylon wheels featuring precision ball bearings, along with adjustable in-track stops, this system guarantees smooth and quiet door operation.
For added convenience, an optional snap-on fascia is available to streamline the installation process and finishing work. The track comes standard in a mill finish, and the fascia in a clear anodized finish. Custom finishes, such as black anodized or powder-coated, are also available.

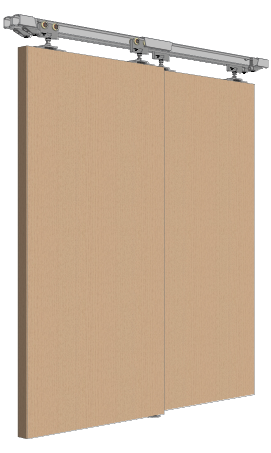

C-548F-B X (track length) 2DR KIT

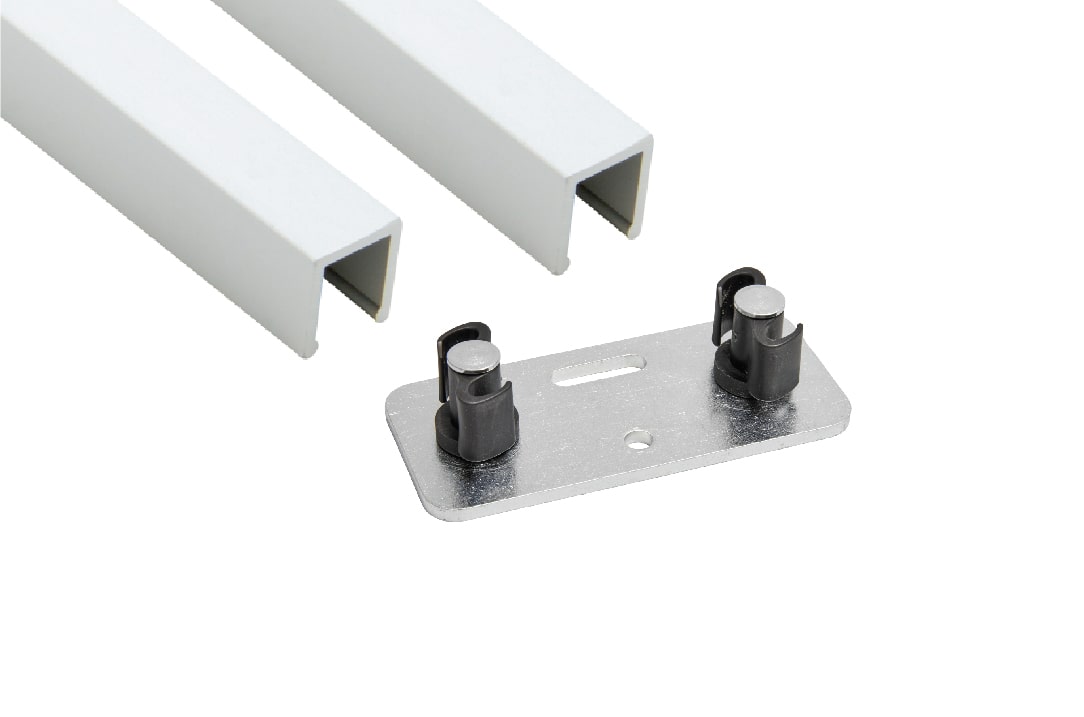

with C-201/C-200D Guide System
Recommended for 1 3/8 in [34.9 mm] doors
C-548-B X (track length) 2DR KIT
with C-201/C-200D Guide System
Recommended for 1 3/8 in [34.9 mm] doors
C-548F-W X (track length) 2DR KIT
with C-914/C-913D Guide System and Fascia
C-548-W X (track length) 2DR KIT
with C-914/C-913D Guide System
C-548F X (track length) 2DR KIT
with Nylon Guides and Fascia
C-548 X (track length) 2DR KIT
with Nylon Guides
(track length) = door width x 2 (for 2 door kits)
