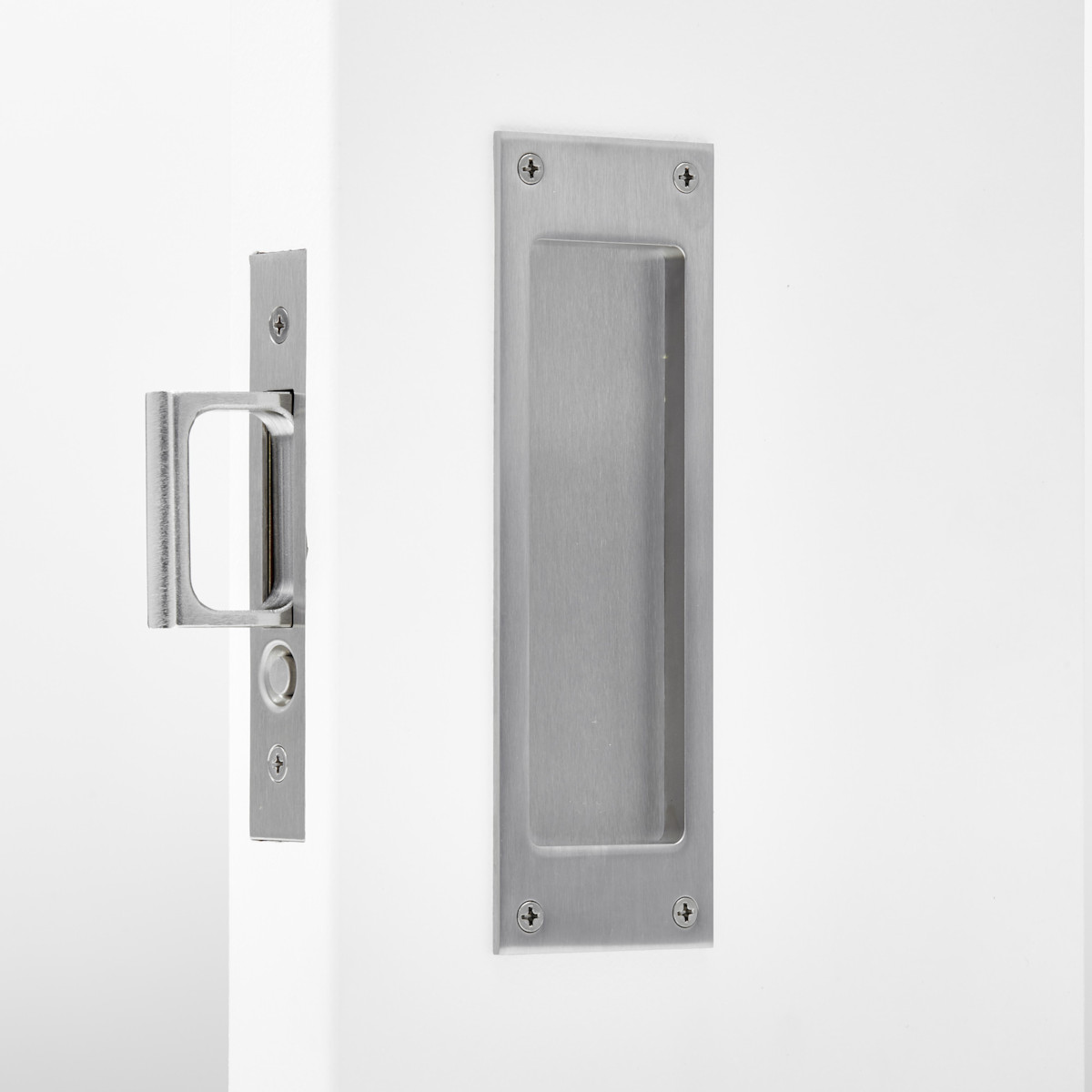

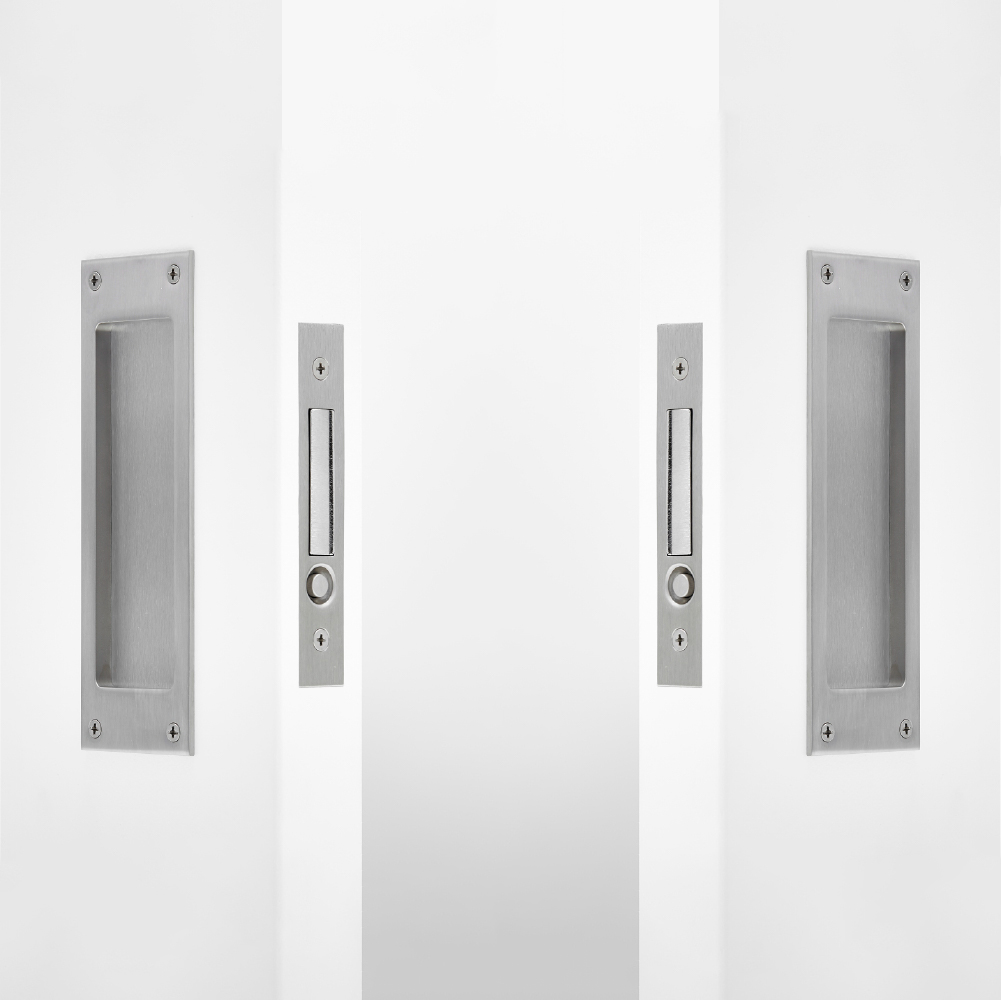

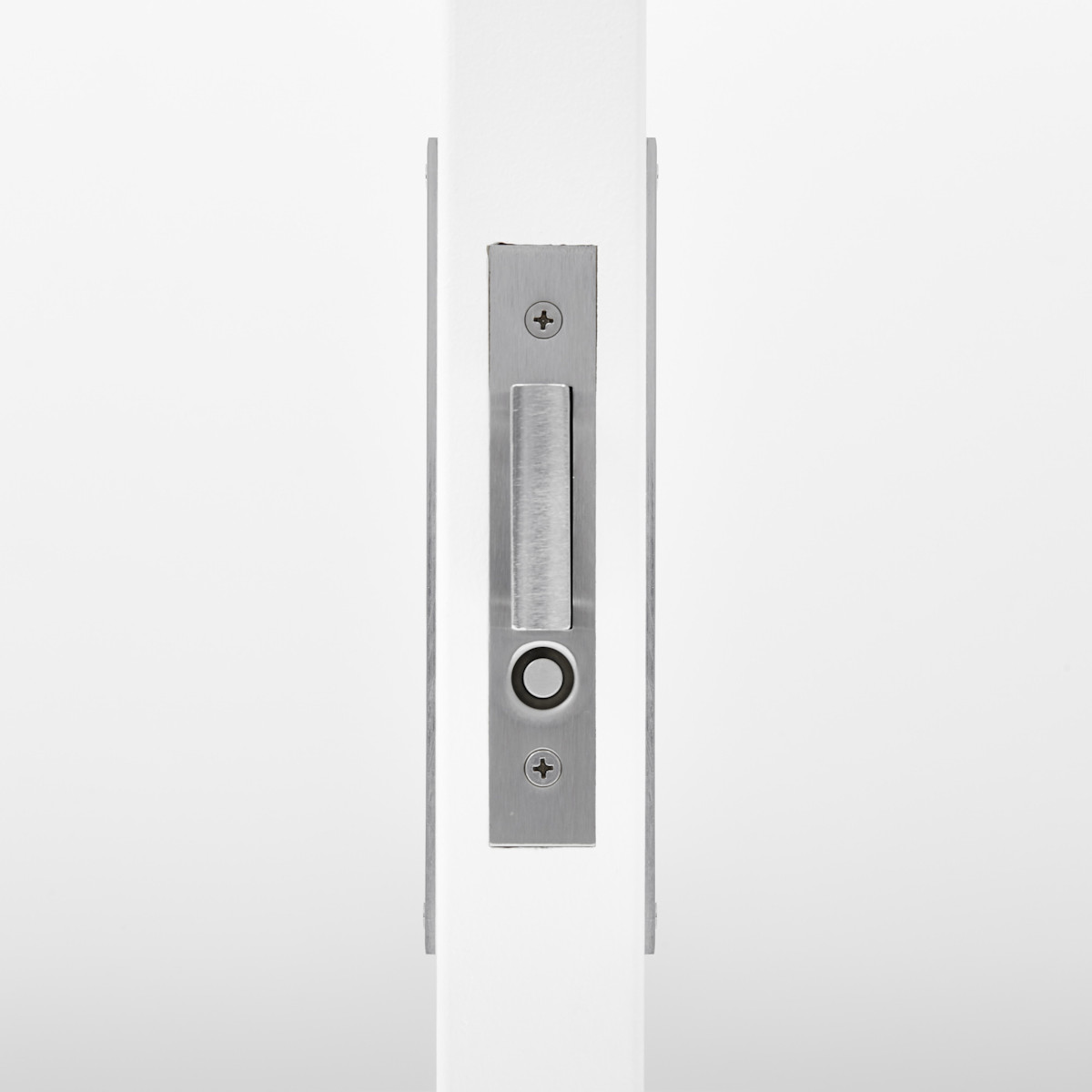

The C-91-BB X2 Passage Set is a comprehensive flush and edge pull system that includes quiet, slow-release edge pull mechanisms. Specifically designed for two-door bi-parting applications, it comes complete with generously sized 2 1/4 in [57.2 mm] by 7 in [177.8 mm] flush pulls. This passage set is available in a variety of architectural finishes, with the option for custom finishing.

Door Thickness: 1 3/8 in [34.9 mm] minimum

Included Components: two C-91 Edge Pulls and four C-90B Flush Pulls

Visit our Passage Sets page for more bi-parting options.

HOW TO SPECIFY/ORDER

2 - C-91-BB x ( )

( ) = finish
