Cylinder + Thumb Slide
Barn Door Lockset

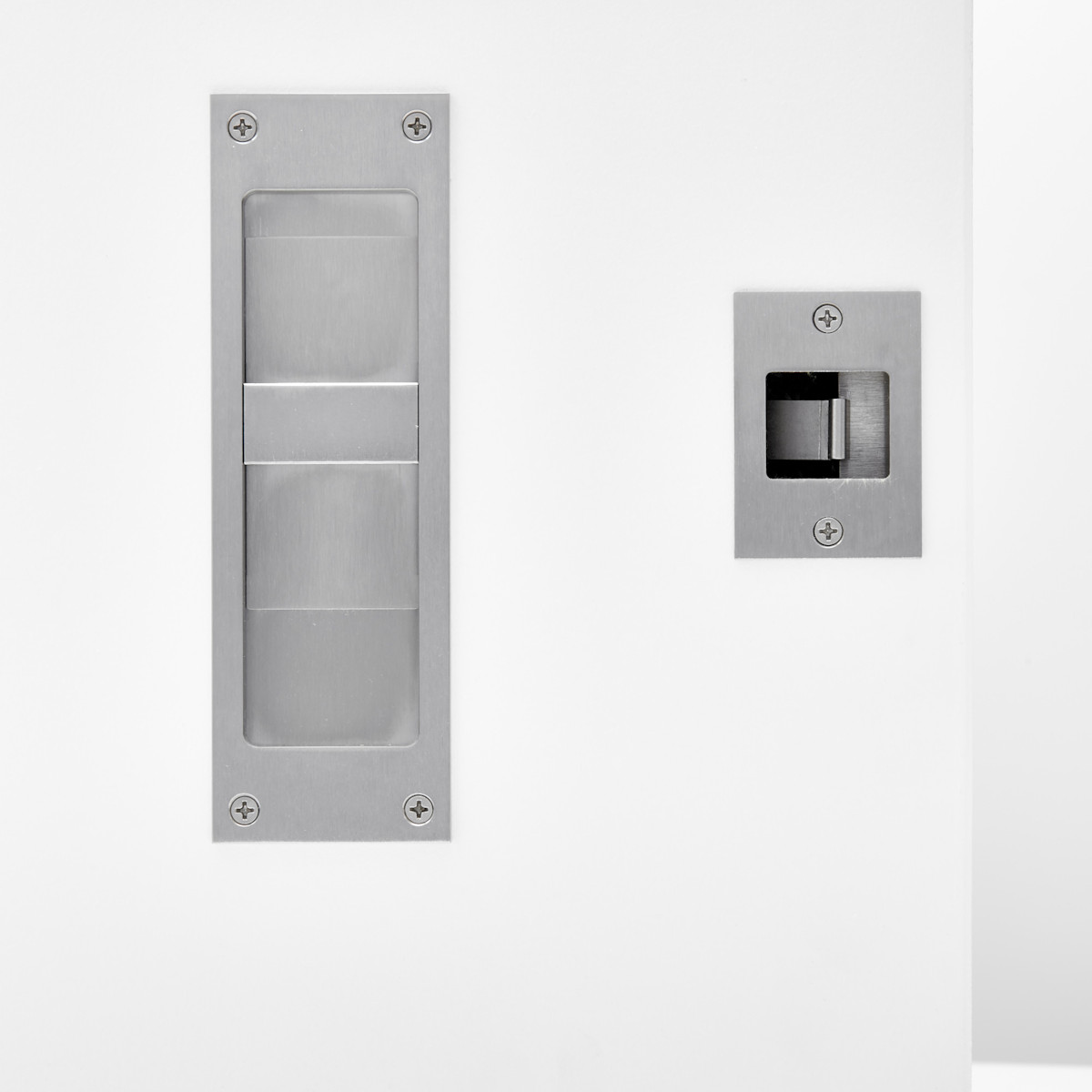

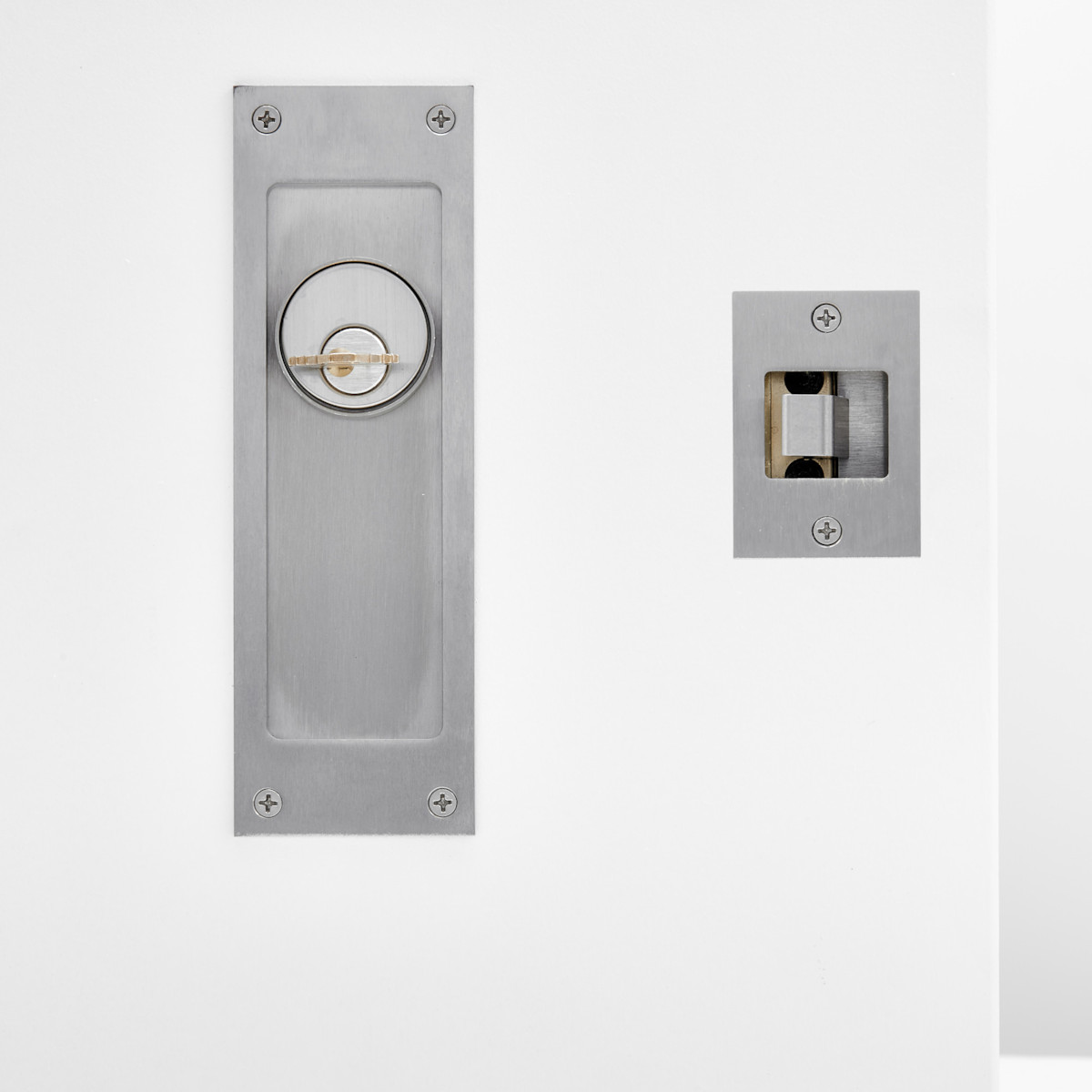

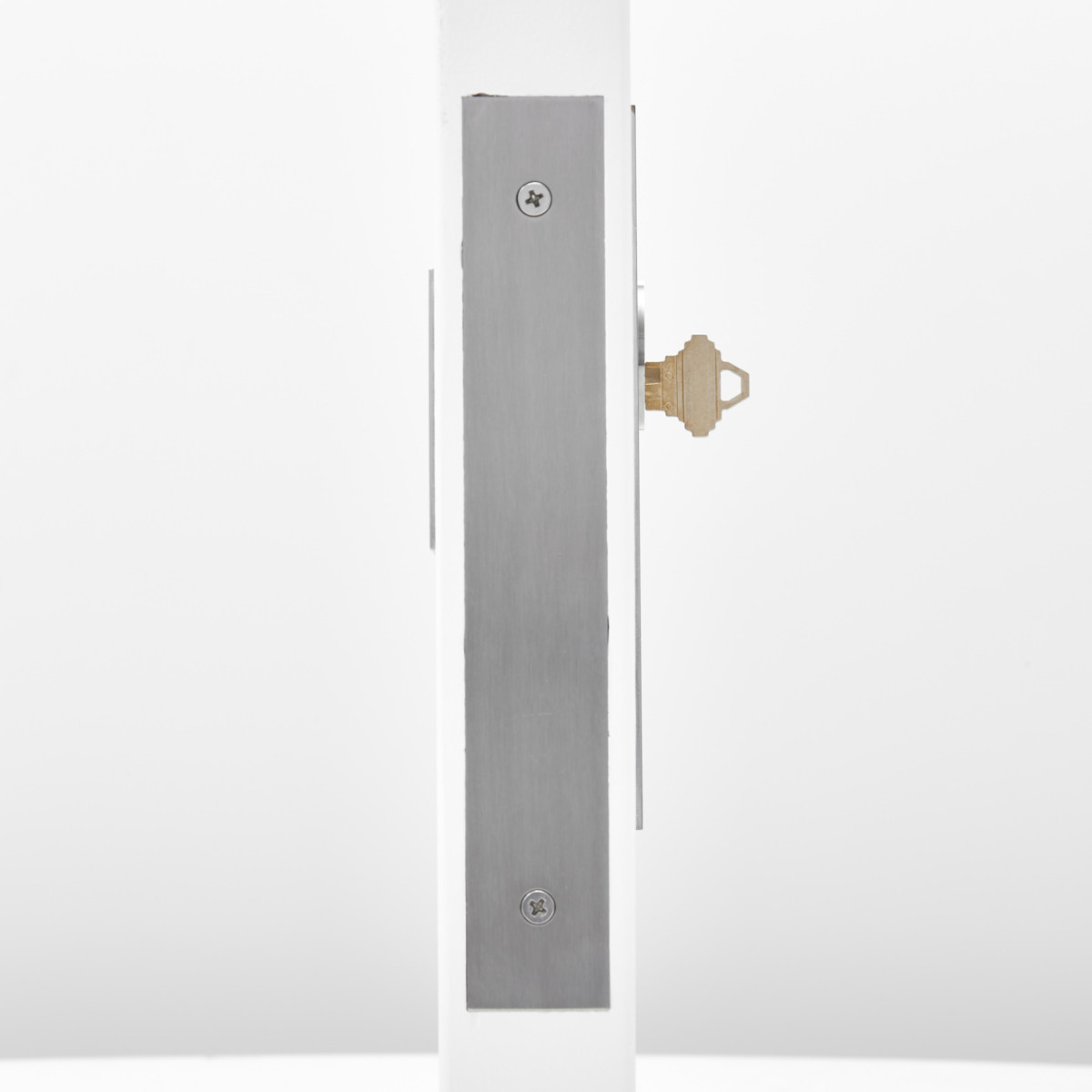

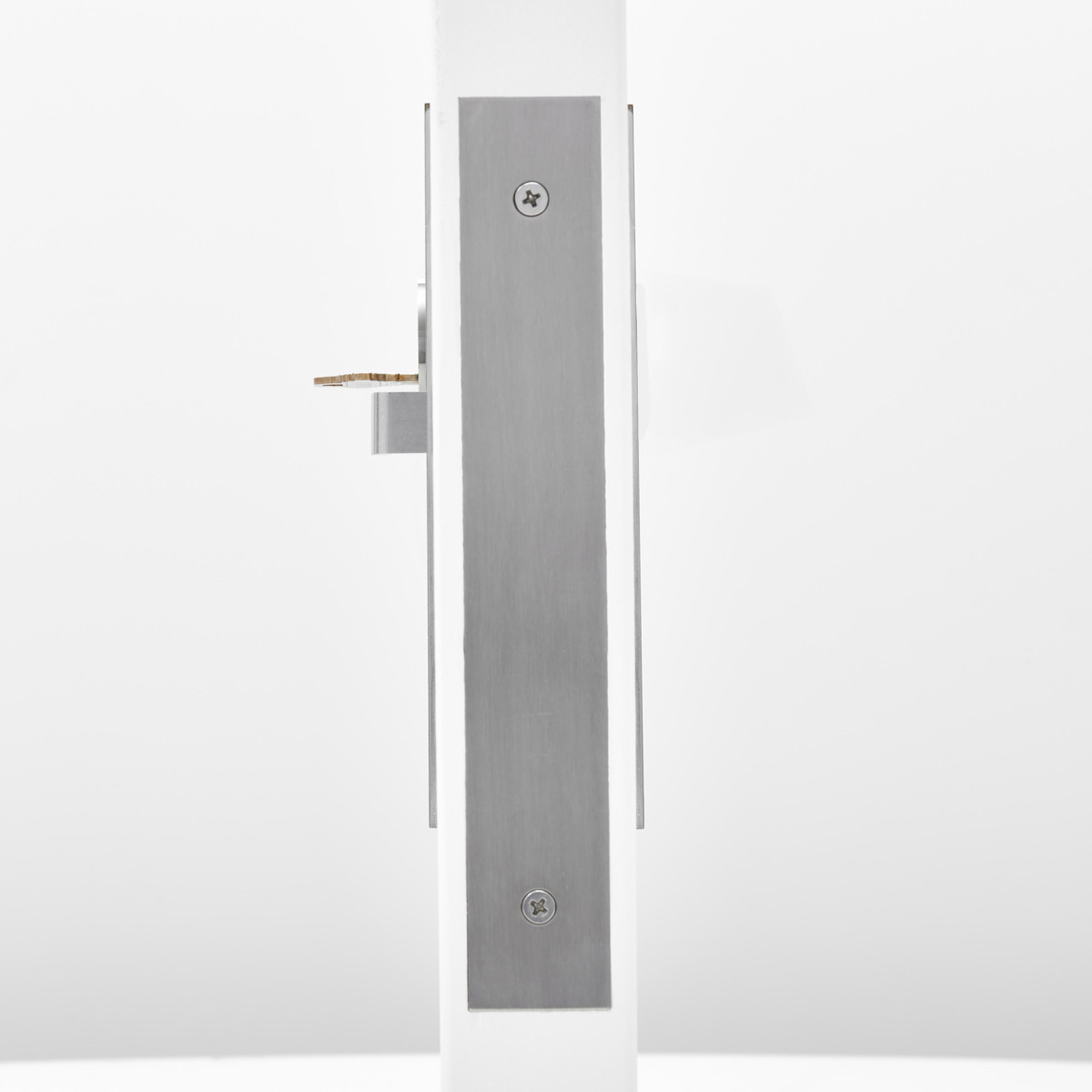

The C-94BL-CT Barn Door Lockset is a comprehensive lock and flush pull system crafted with precision and attention to detail. This set includes generously sized 2 1/4 in [57.2 mm] by 7 in [177.8 mm] flush pulls, one with a 1 in [25.4 mm] cylinder and one with a thumb slide, providing security without compromising on style or ease of use. One of the lockset's notable features is its concealed locking mechanism, which differs from the traditional projecting strike commonly found on barn doors. This lockset is available in a variety of architectural finishes, with the option for custom finishing available.
Door Thickness: 1 3/4 in [44.5 mm]
Strike Plate: 2 1/4 in [57.2 mm] x 4 in [101.6 mm]
Backset: standard 6 in [152.4 mm] backset for 3 in [76.2 mm] overlap (alternative backsets available upon request)
Handing: specify left or right
Included Components: one C-94BL Barn Door Lock Body, one C-90C Cylinder Flush Pull, one Cylinder, and one C-90T Thumb Slide Flush Pull
C-94BL-CT x ( ) LH
Left-Handed
C-94BL-CT x ( ) RH
Right-Handed
( ) = finish
