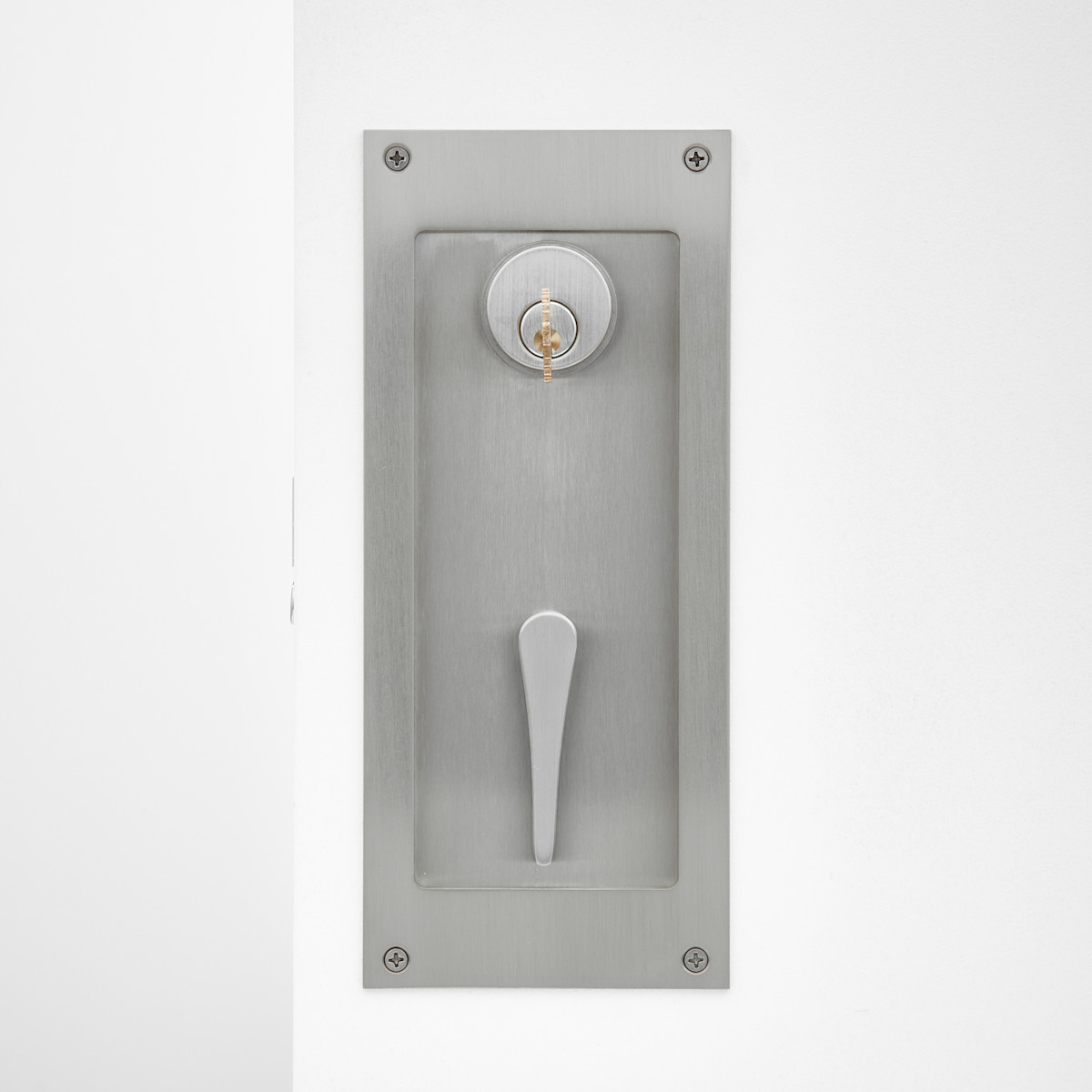

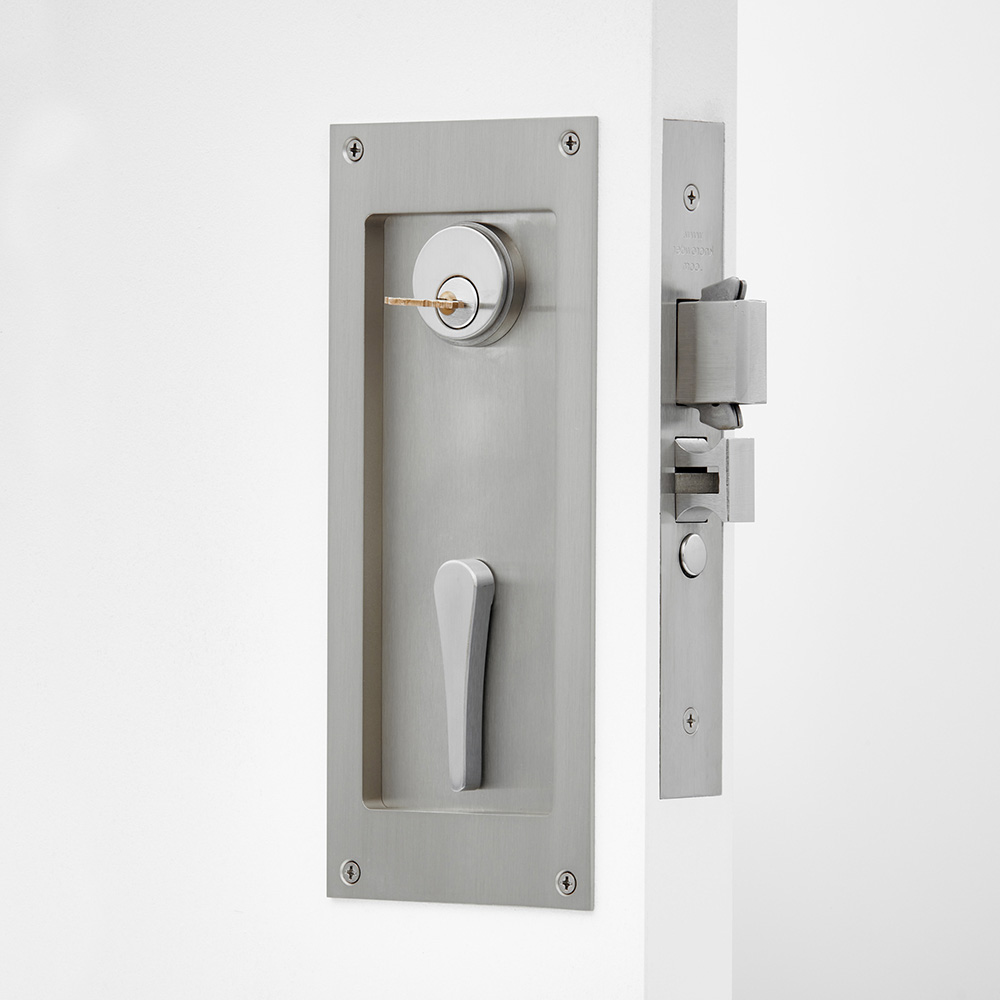

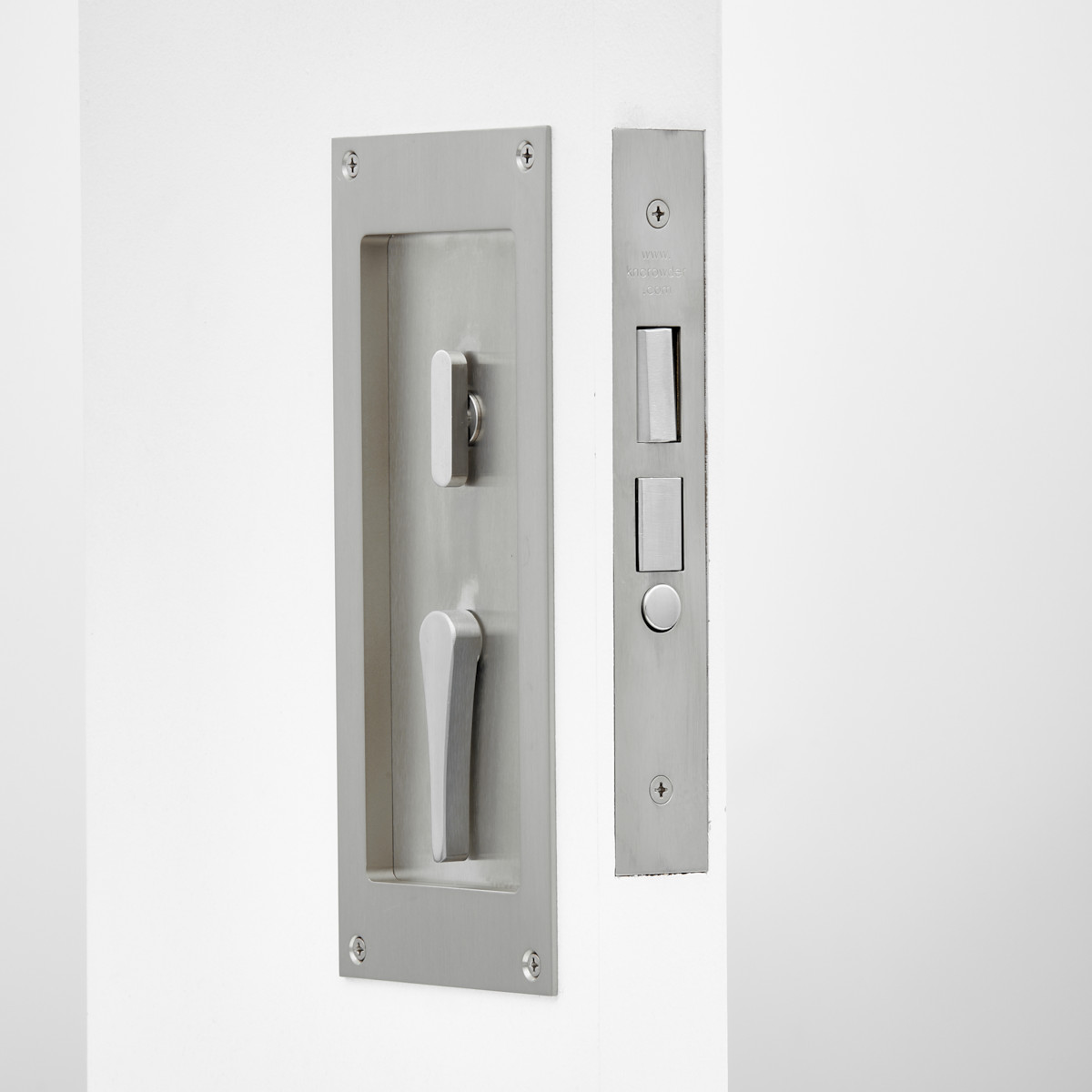

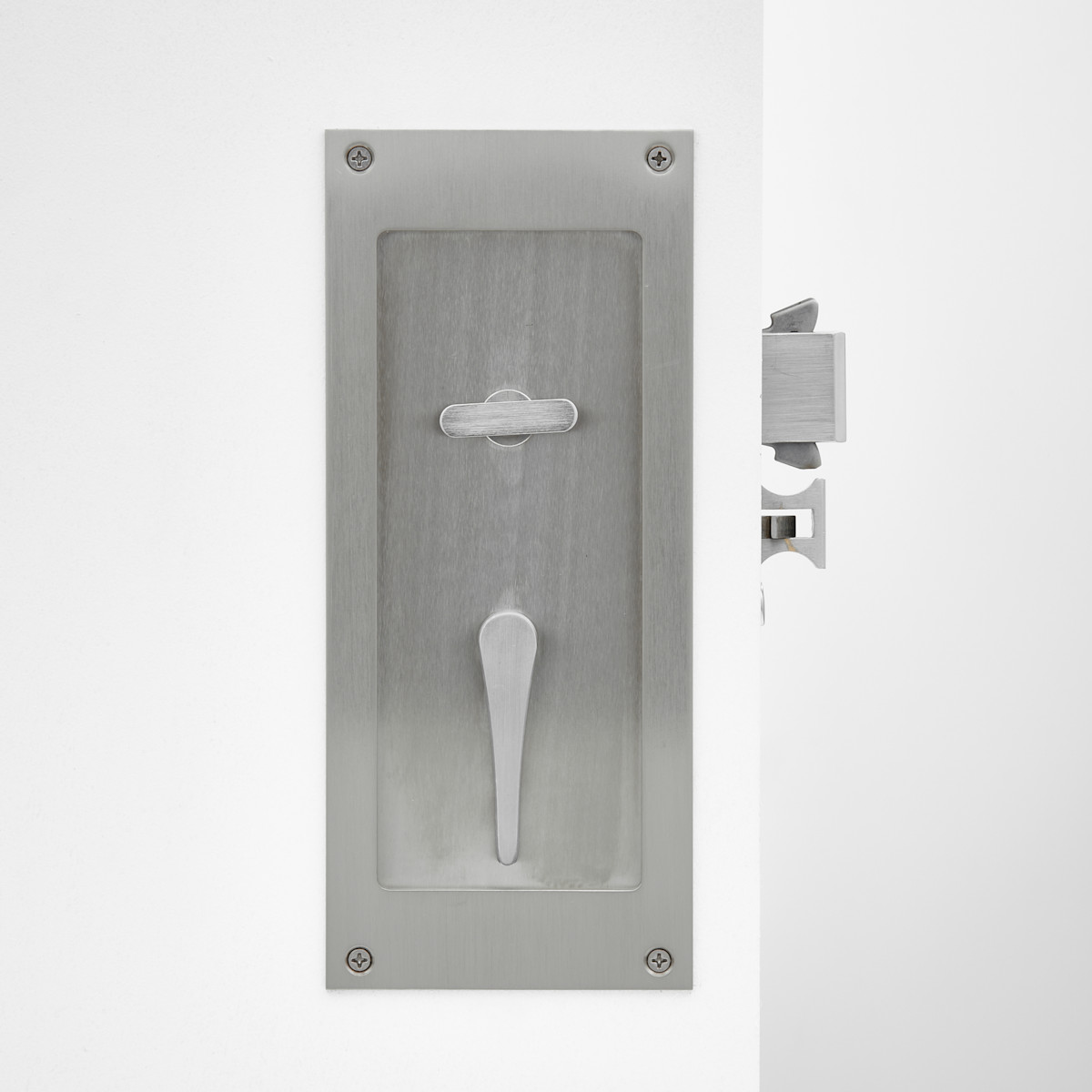

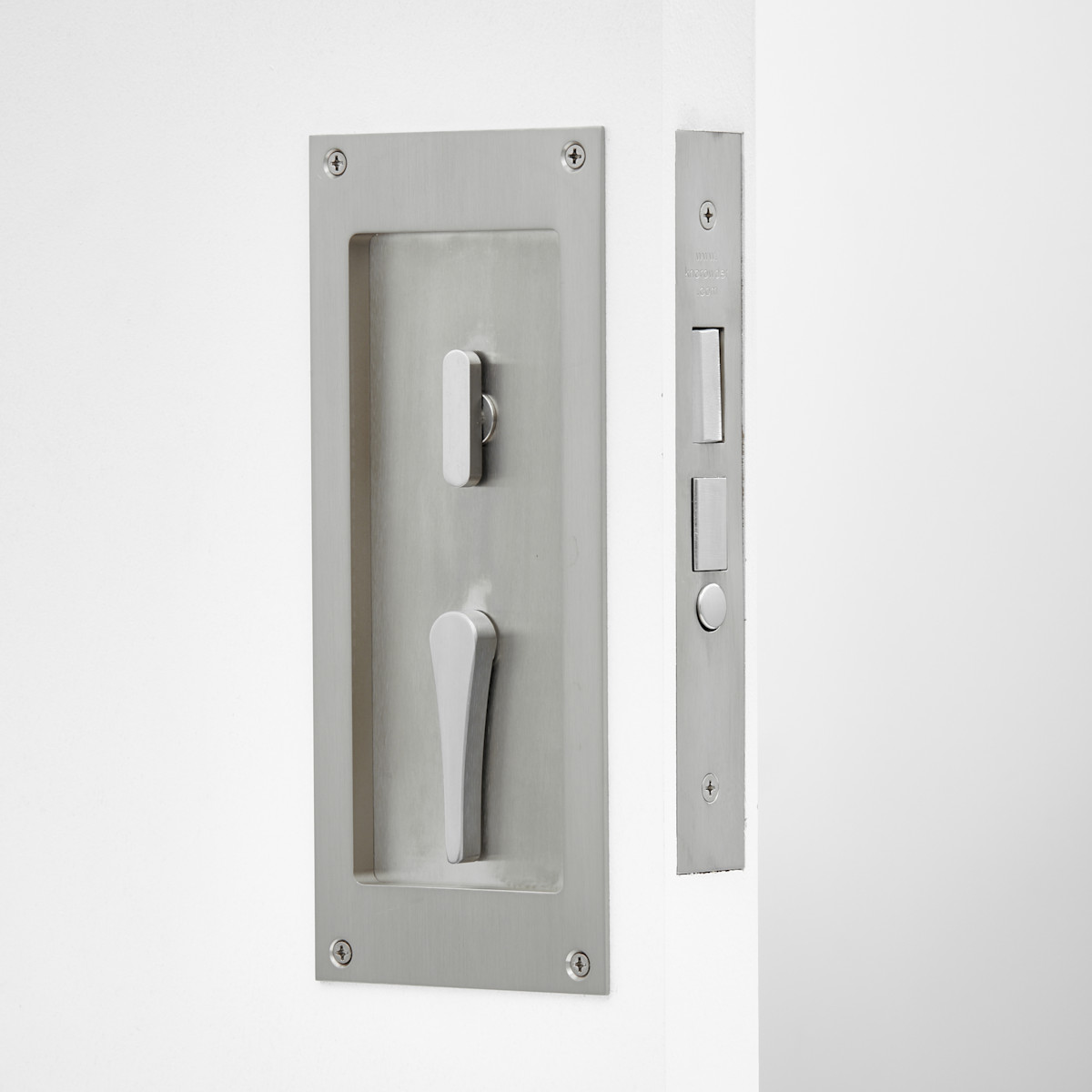

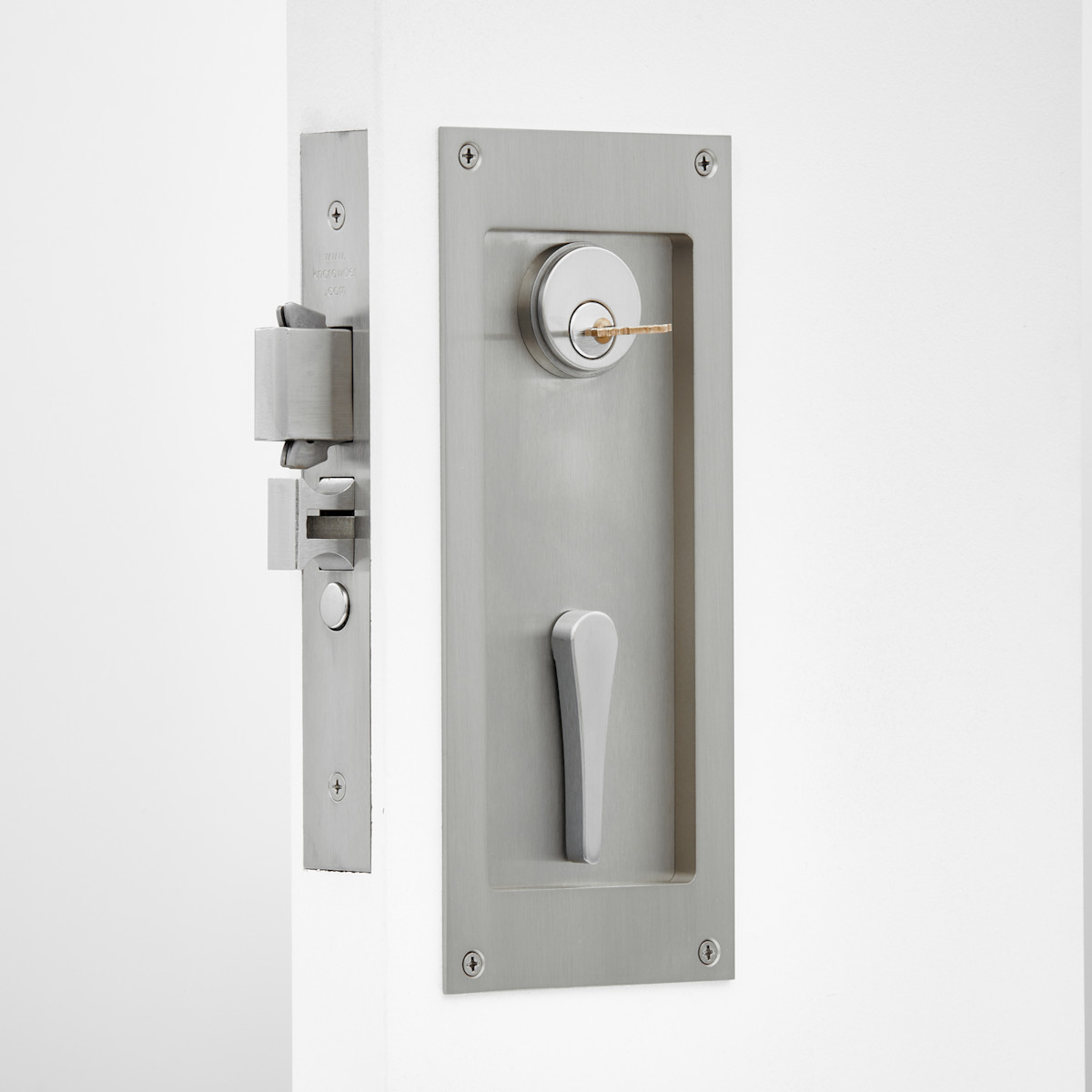

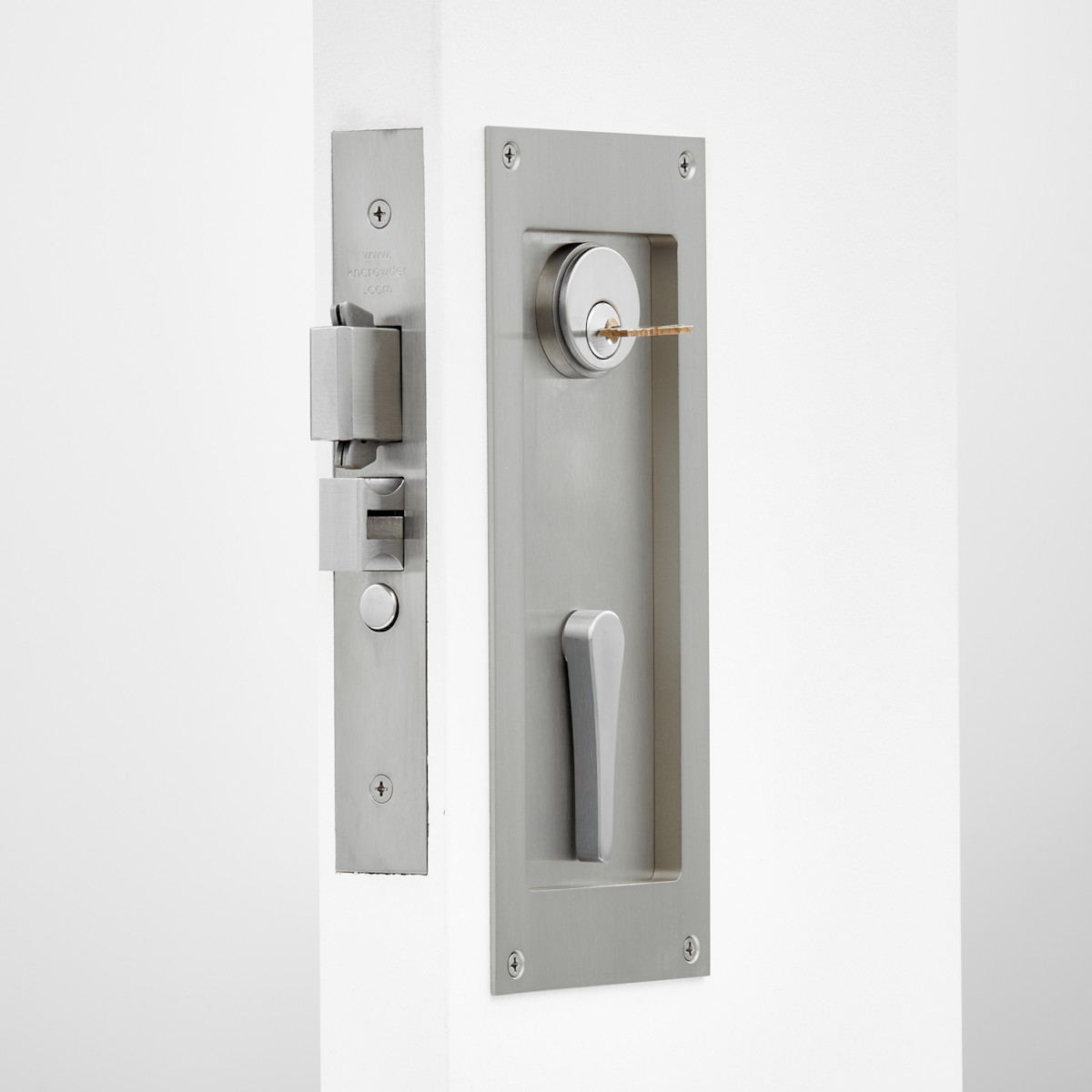

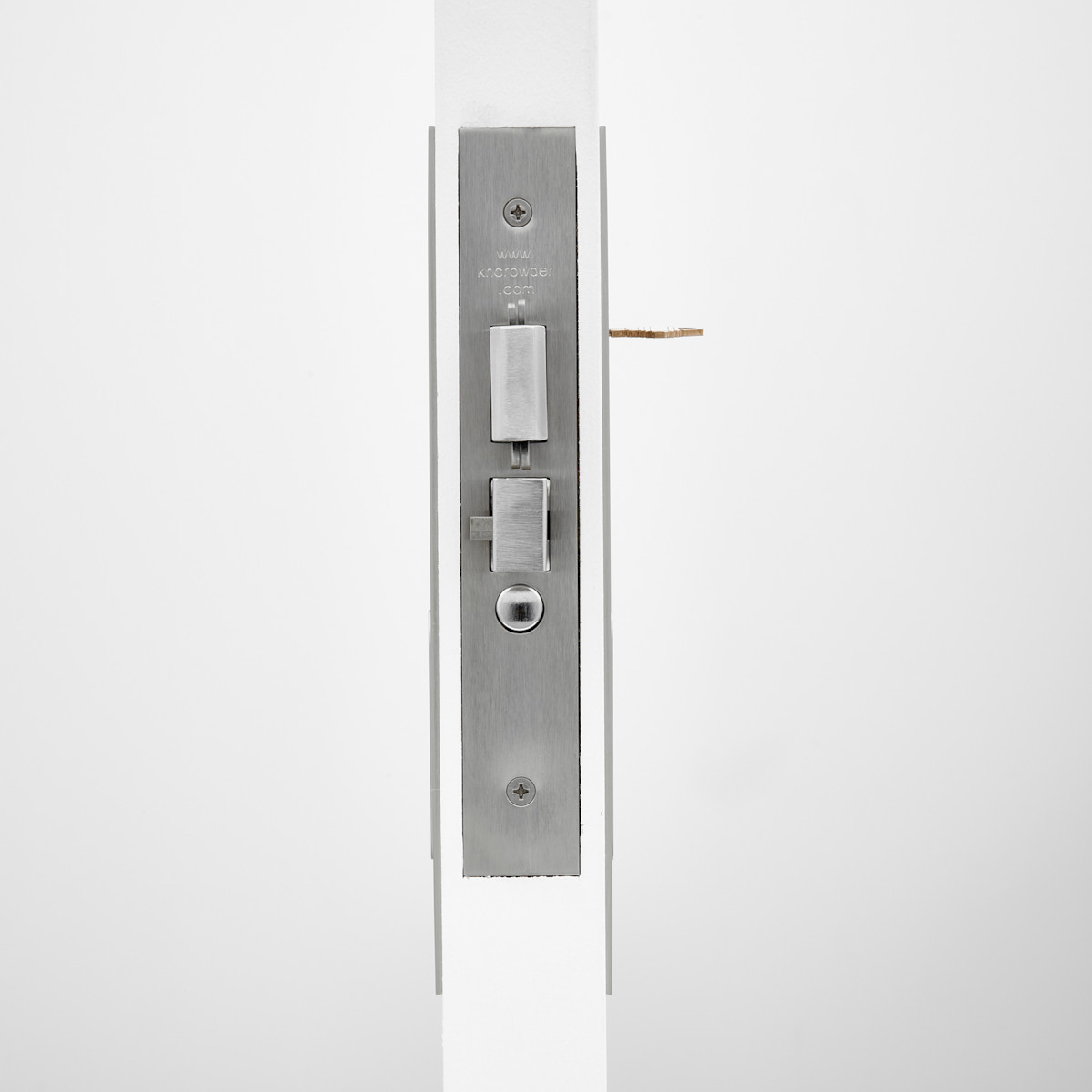

The C-95SL-CT Security Lockset is a self-latching system that offers added flexibility by allowing the incorporation of a deadbolt for enhanced security. This set includes contemporary 3 7/8 in [98.4 mm] by 9 3/8 in [238.1 mm] trims - one with a 1 in [25.4 mm] cylinder and one with a thumb turn, providing security without compromising on style or ease of use. This lockset is available in a variety of architectural finishes, with the option for custom finishing available.

Door Thickness: 1 3/4 in [44.5 mm]

Strike Plate: 1 1/4 in [31.8 mm] x 4 7/8 in [123.8 mm]

Dustproof Box: included

Backset: standard 2 3/4 in [69.9 mm] backset (alternative backsets available upon request)

Handing: specify left or right

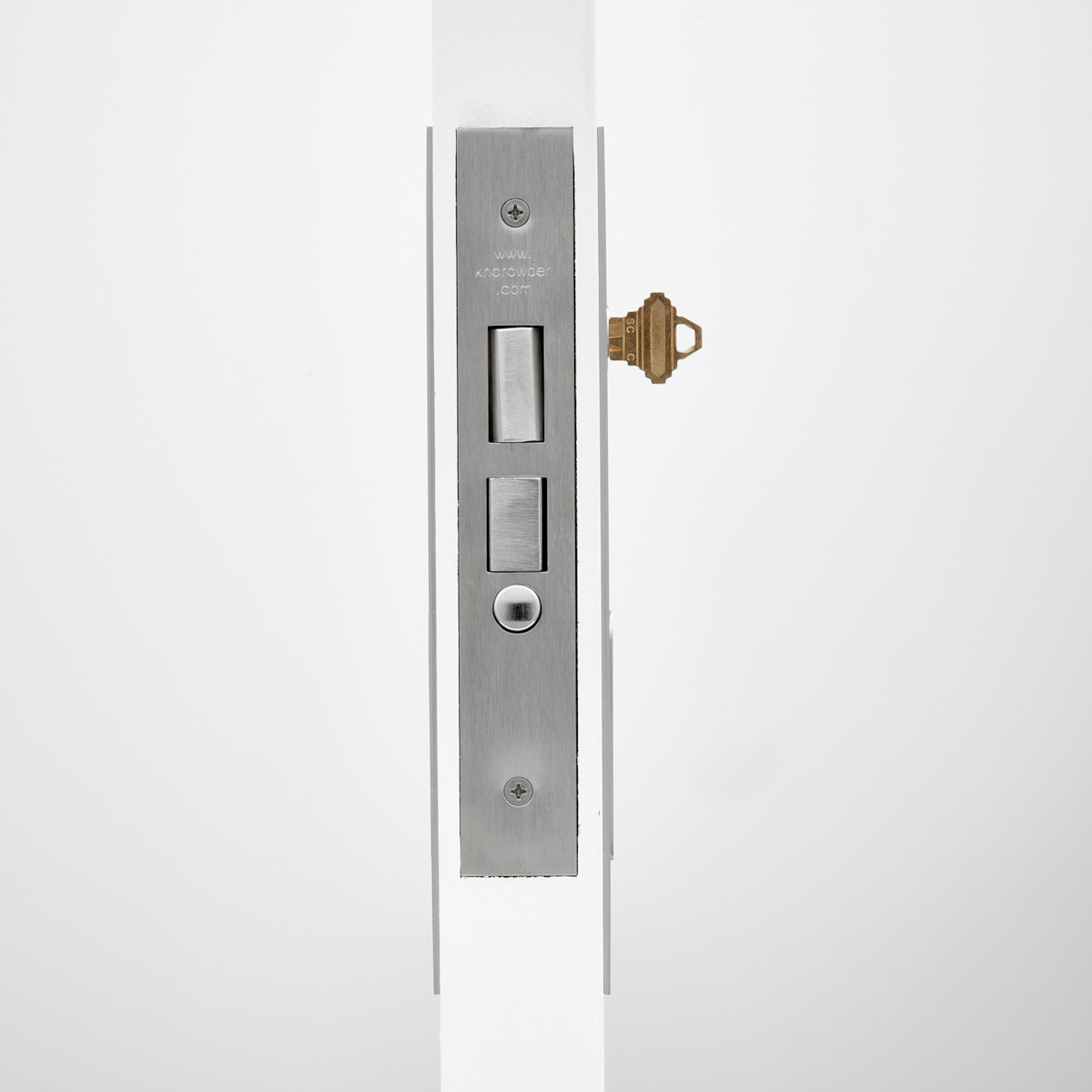

Included Components: one C-95ESL Entry Self Latching Lock and Edge Pull Body, one C-95CFP Cylinder Self-Latching Lever Trim, one Cylinder, and one C-95TFP Thumb Turn Self-Latching Lever Trim

HOW TO SPECIFY/ORDER

C-95SL-CT x ( ) LH
Left-Handed

C-95SL-CT x ( ) RH
Right-Handed

( ) = finish
