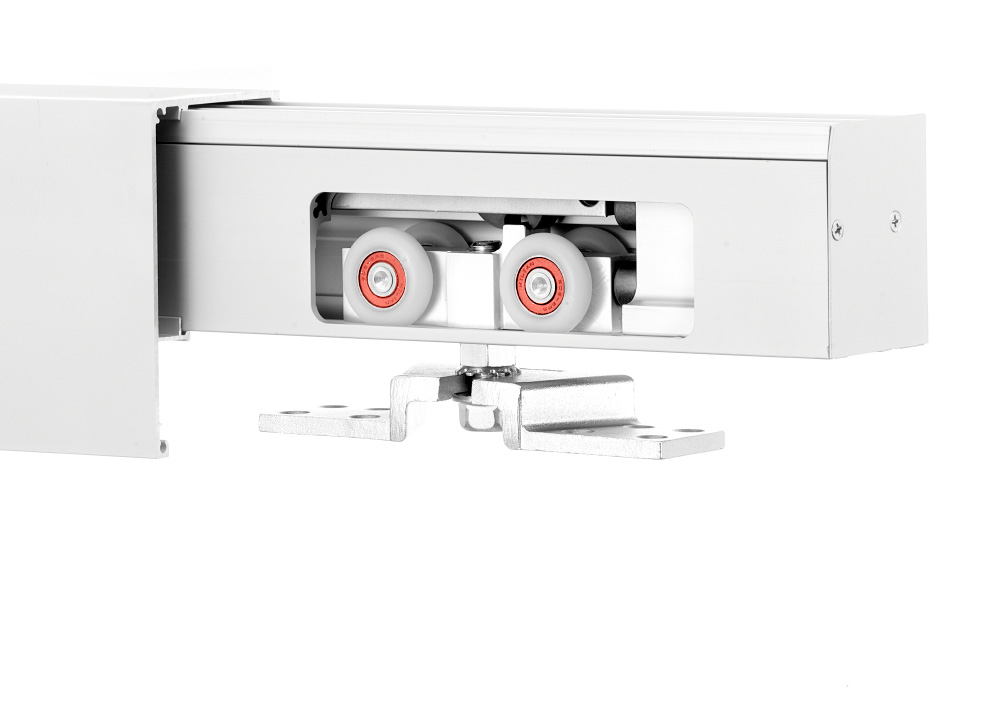

Sleek and simple, these side-mounted kit combinations feature a modern track with subtle detailing paired with our Heavy-Duty Easy Connect Hangers, which feature ½ in vertical adjustment by threaded door plate and locknut, for a quick and easy install.

Our nylon wheels with precision ball bearings always make for smooth and quiet door operation. Our patented Catch ‘N’ Close closing system adds to the sleekness by gently guiding the door into position without any assistance.

Ideal for mirror covered, glass insert or solid core doors.

For added convenience, optional snap-on fascia and fascia end caps are available to streamline the installation process and finishing work. The track, side-mount bracket, fascia, and end caps come standard in a clear anodized finish. Custom finishes, such as black anodized or powder-coated, are also available.

Suitable Door Thickness - Min 1 3/4 in (44.5 mm)

CATCH ‘N’ CLOSE

Using gas spring technology, we created a system that allows sliding doors to close and stay closed. The door will automatically slow and close itself the final few inches without user assistance. This design has the unique ability to safeguard the door and hardware from wear and tear.

video GIF
product image

SUPERIOR DESIGN & COMPONENTS

KN Crowder is committed to innovation and quality engineered, durable, time-tested door hardware. Our engineering experts provide solutions to your specific hardware needs. Our raw materials are of the highest quality and North American sourced, with all manufacturing done in Canada. With over 150, 000 cycle tests or the equivalent of 30 years of normal use, our hangers stand strong without experiencing any measurable wear or increase in noise.

HOW TO SPECIFY/ORDER

CCB-( )-998 X (track length) 1DR KIT
with Track, Side-Mount Bracket, and End Caps

Fascia add-on: CC-920 x (track length)
Fascia End Cap add-on: CC-922

( ) = maximum door weight (2 for 200 lbs. [91 kg] or 3 for 300 lbs. [136 kg])

(track length) = door width x 2 (for 1 door kits)
