Frame only

Type GA Frame

The 3/4 in [19 mm] profile of the GA frame provides a picture-perfect border for any of our foot grilles

The nylon anchors ensure a secure installation in the concrete and the deep frame provides 1 in [25.4 mm] of additional depth, under the grille, to collect even more dirt and debris.

Aluminum alloy 6063-T5
Assembly required
Hardware included

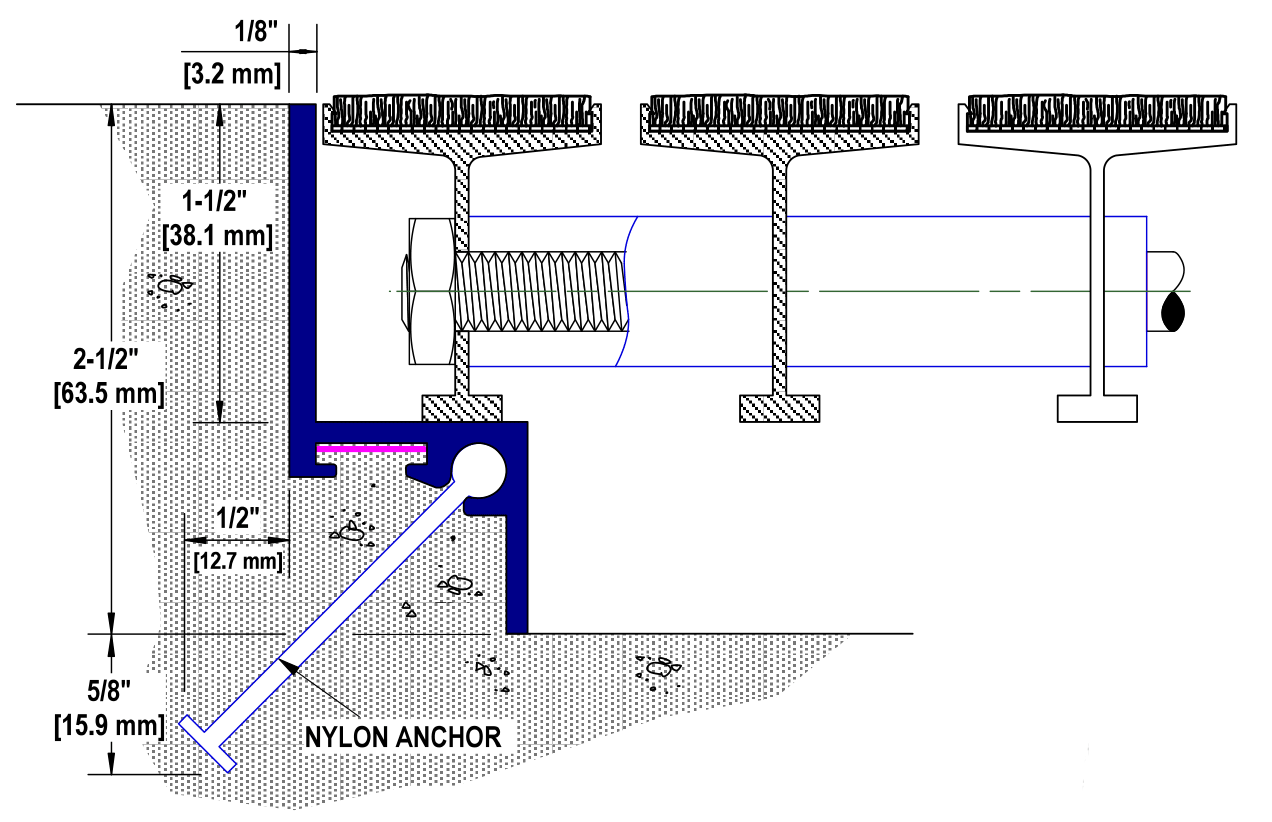

Type GB Frame

The thin 1/8 in [3.2 mm] profile of the GB frame provides a minimal border creating an almost seamless transition between the foot grille and the finished flooring.

The nylon anchors ensure a secure installation in the concrete and the deep frame provides 1 in [25.4 mm] of additional depth, under the grille, to collect even more dirt and debris.

Aluminum alloy 6063-T5
Assembly required
Hardware included

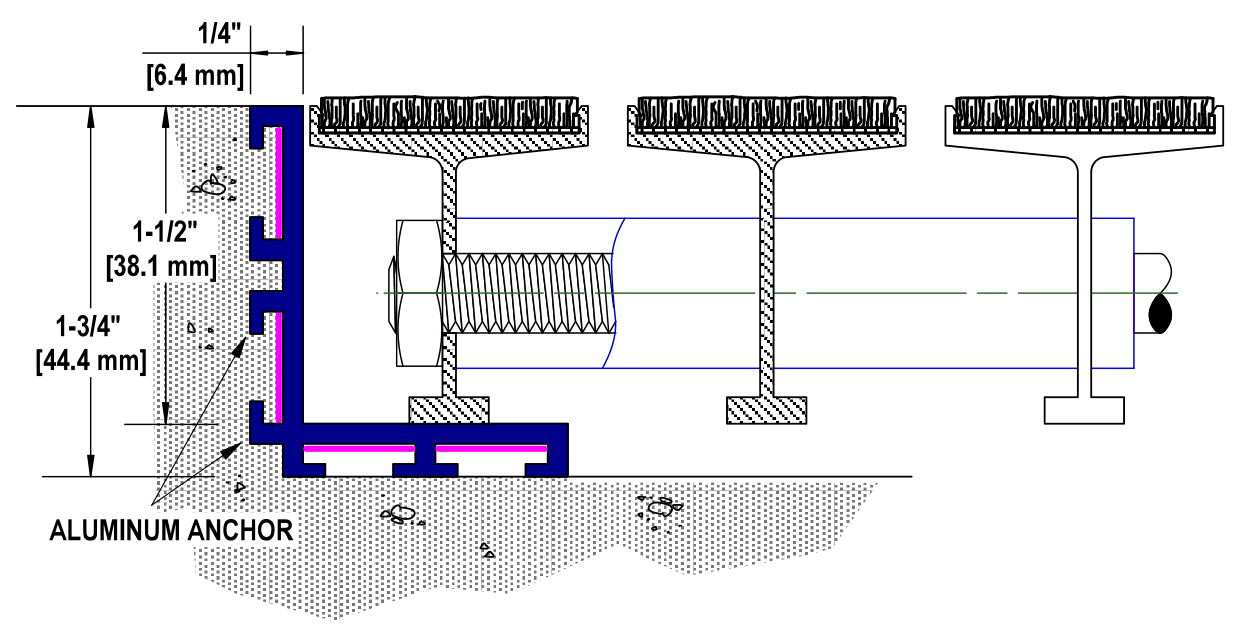

Type GC Frame

The 1/4 in [6.4 mm] angle frame is the perfect solution for any retrofit application, where depth is limited.

This frame comes complete with extruded aluminum anchors, making it easier for concrete to adhere to, when set into the recessed opening.

Aluminum alloy 6063-T5
Assembly required
Hardware included

Frame with evaporation pan

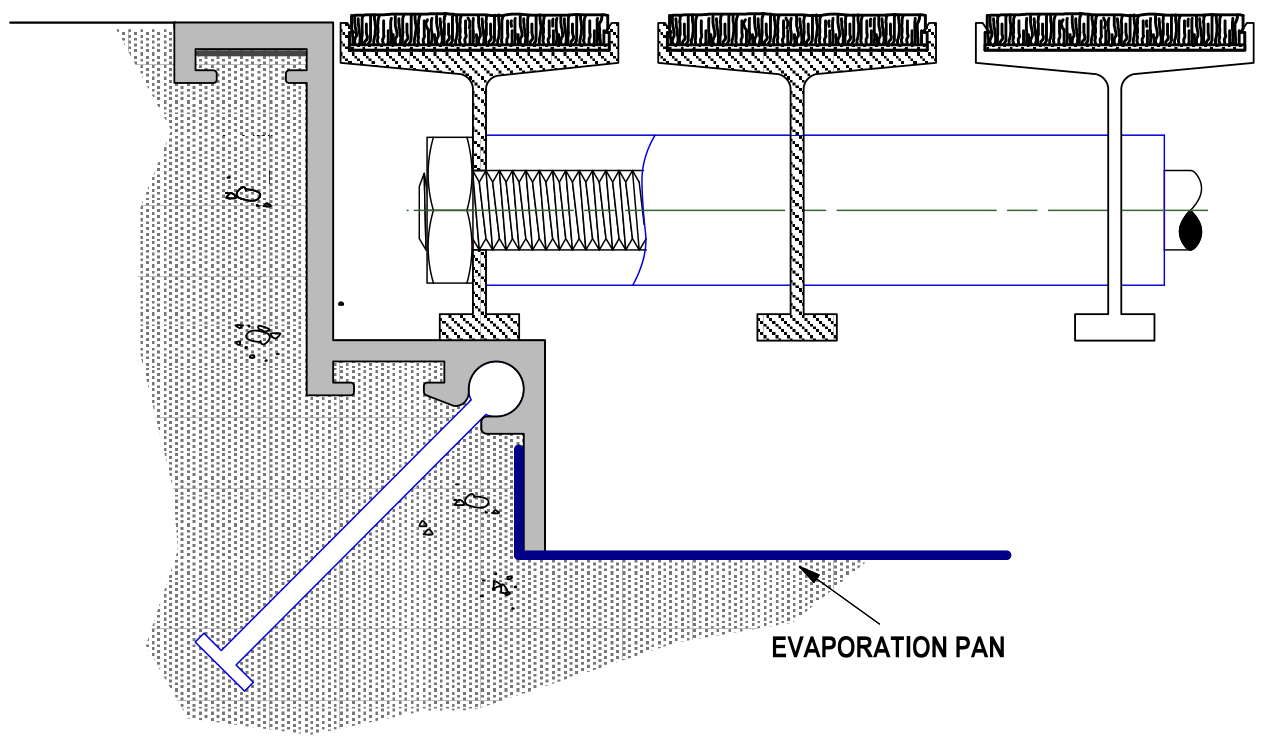

Type GA Frame

All evaporation pans will have a 1/2 in [12.7 mm] raised edge at the perimeter to fit around the bottom of the frame

Available in:
20 ga. galvanized steel
16 ga. aluminum
20 ga. stainless steel

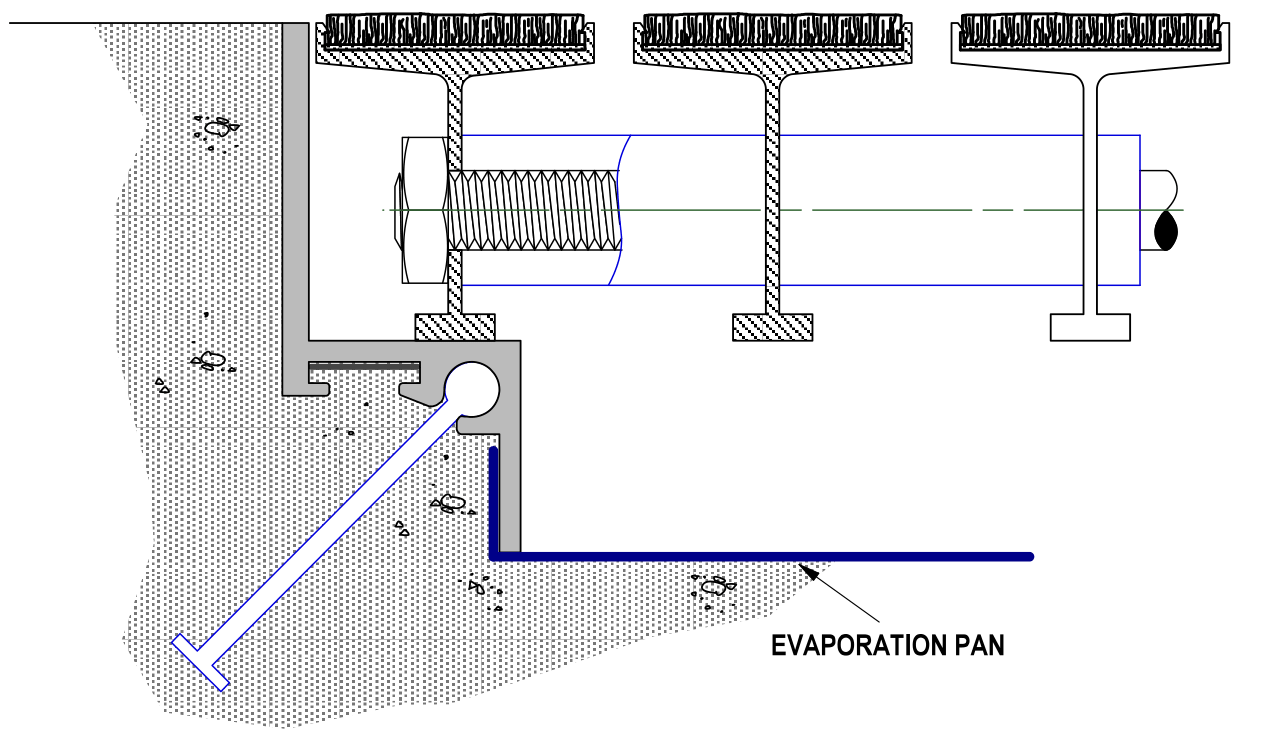

Type GB Frame

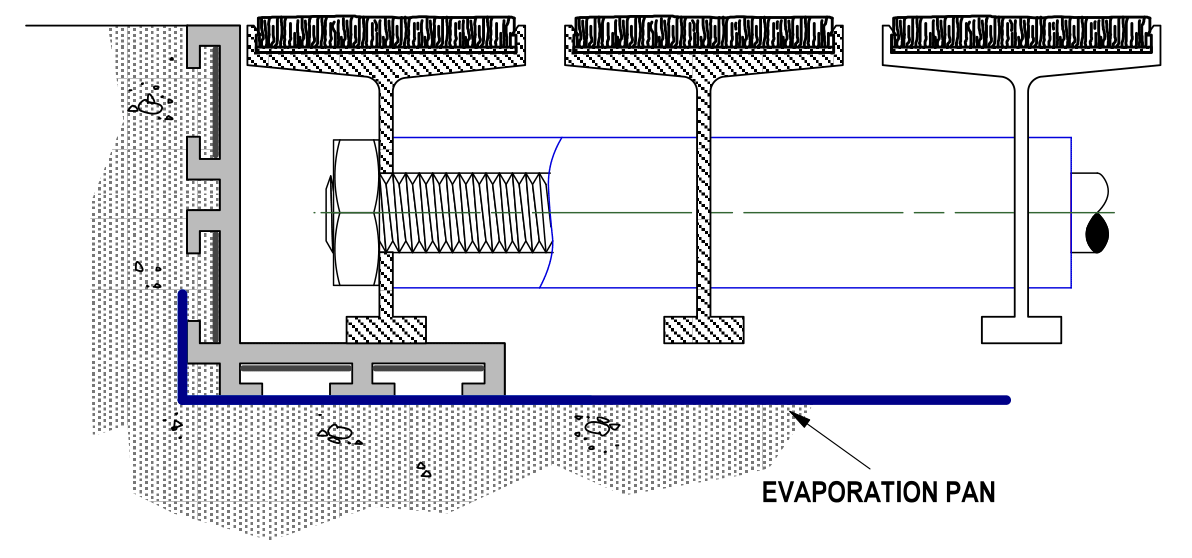

Type GC Frame



Frame with drain pan

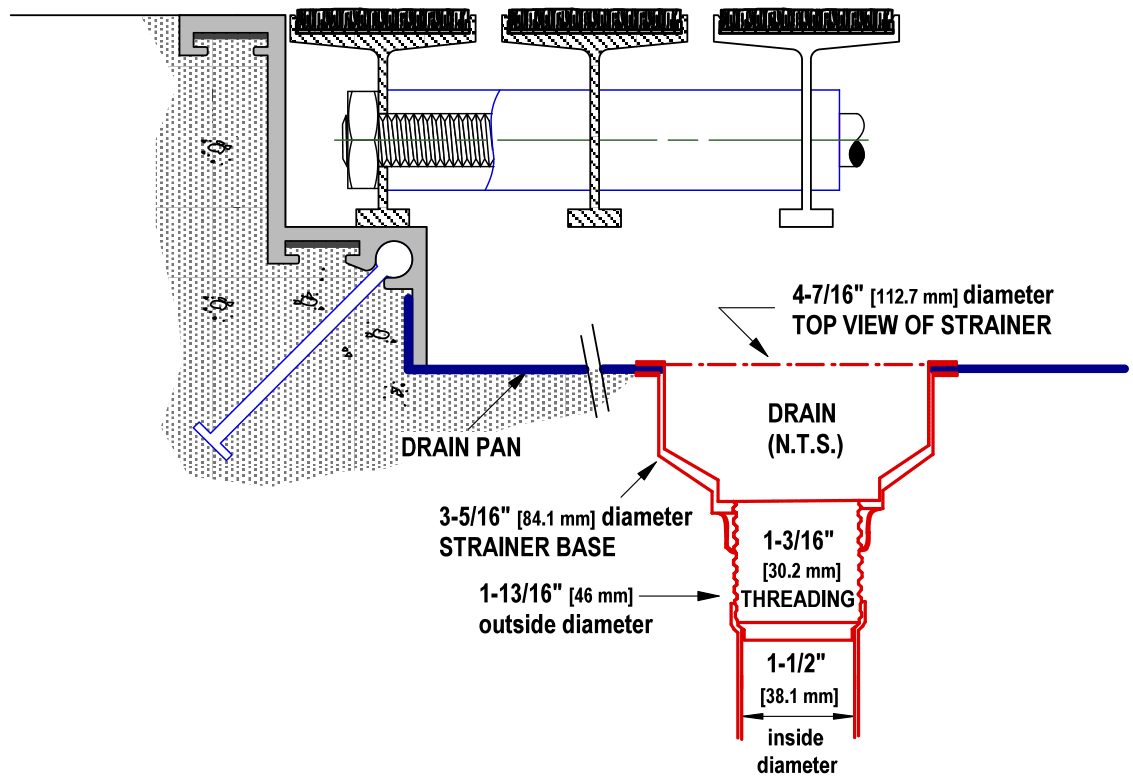

Type GA Frame

Drain pans come complete with a stainless steel strainer and 3 5/8 in [92.1 mm] diameter cutout.

The pan is formed with a 1/2 in [12.7 mm] raised edge at the perimeter, to fit around the bottom of the frame.

Available in:
20 ga. galvanized steel
16 ga. aluminum
20 ga. stainless steel

Type GB Frame

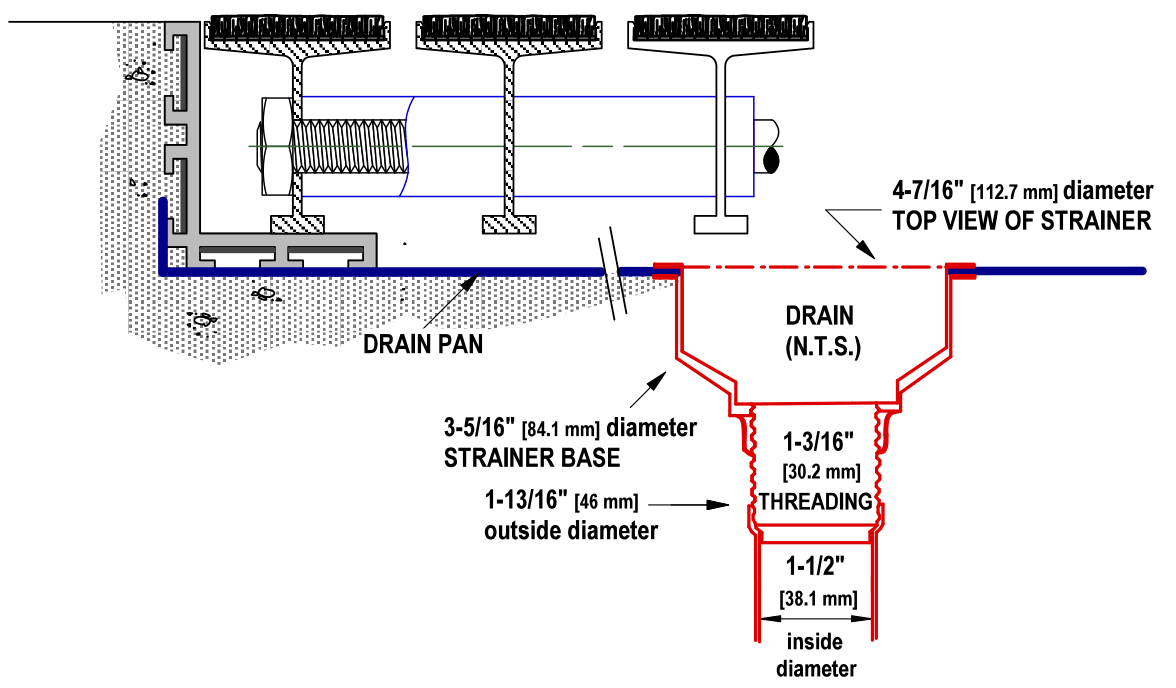

Type GC Frame
