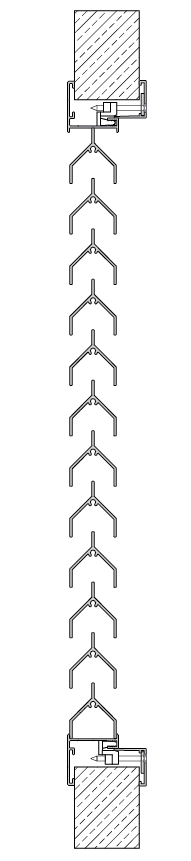

Our CDL louvers can be custom built to your size specifications and feature sight-proof, inverted y-blades, providing a functional and aesthetically pleasing solution for your door needs. Designed for easy installation and optimal air flow, with 30% free space, these louvers are perfect for wood, hollow metal, or plastic laminated doors. Fabricated using 6063-T5 aluminum alloy with a minimum thickness of .062 in [1.57 mm], with reinforced screw slot fastening members ensures long-lasting performance. Frame sections are securely clamped together with durable nylon clips, preventing screw loosening due to vibrations.

The CDL louver is offered in a mill finish or a clear anodized finish. Custom finishes, such as a semi-gloss black or white powder-coat, are also available. Other customizable options include, insect and bird screens and a back-frame-free design.

PRODUCT ORDER SIZE DOOR CUT-OUT
WIDTH
(inches)
HEIGHT
(inches)
OPENING WIDTH
(inches)
OPENING HEIGHT
(inches)
FREE AREA
(square inches)
Mill Finish Clear Anodized
(-CA)
Semi-gloss White Powder-coat
(-WH)
Semi-gloss Black Powder-coat
(-BP)
12 X 7 12 7 1/8 15.9 X X - -
12 X 12 12 12 5/8 37.2 X X X X
14 X 10 14 9 7/8 31.9 X X - -
14 X 12 14 12 5/8 44.7 X X - -
16 X 12 16 12 5/8 52.1 X X - -
18 X 10 18 9 7/8 42.6 X X - -
18 X 12 18 12 5/8 59.6 X X X X
18 X 18 18 18 1/8 93.6 X X - -
20 X 12 20 12 5/8 67 X X - -
20 X 14 20 14 76.6 X X - -
20 X 15 20 15 3/8 86.2 X X - -
20 X 18 20 18 1/8 105.3 X X - -
20 X 20 20 19 1/2 117 X X - -
22 X 12 22 12 5/8 74.4 X X - -
22 X 15 22 15 3/8 95.8 X X - -
22 X 18 22 18 1/8 117 X X - -
24 X 12 24 12 5/8 81.9 X X X X
24 X 16 24 16 3/4 117 X X - -
24 X 18 24 18 1/8 128.8 X X - -
24 X 22 24 22 1/4 163.6 X X - -
24 X 24 24 24 170 X X X X
24 X 36 24 36 252 X X - -
26 X 18 26 18 1/8 140.4 X X - -
Custom sizes available with a minimum size of 8 in [203.2 mm] wide x 8 in [203.2 mm] high. Please contact KN Crowder at [email protected] or 1-866-999-1562 for a quote.
HOW TO SPECIFY/ORDER

Standard Sizes
CDL( ) (product width) X (product height)

Custom Size
CDL( ) (width) X (height)
(dimensions are door cut-out size, unless specified otherwise)

( ) = finish
