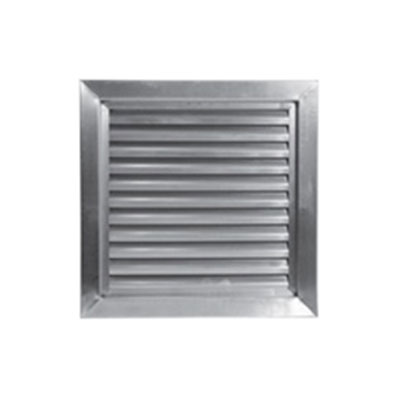

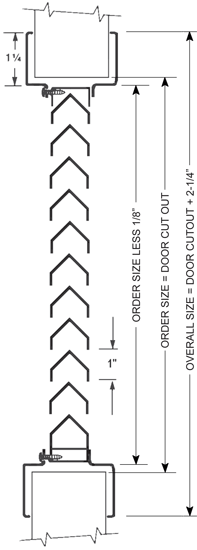

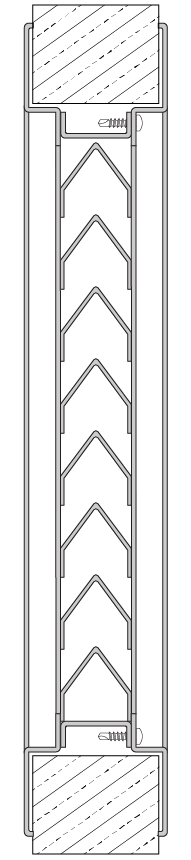

Our SDL-V90 louvers are custom built to your size specifications and feature sight-proof, inverted y-blades, providing a functional and aesthetically pleasing solution for your door needs. Designed for easy installation and optimal air flow, with 50% free space, these louvers are perfect for wood, hollow metal, or plastic laminated doors in schools, Class A, and institutional buildings. Constructed with an 18-gauge cold-rolled steel frame and 20-gauge blades, they deliver long-lasting performance. The self-attaching frame features a 1 1/4 in [31.7 mm] trim with mitered and welded corners. Screws fasten through the frame into the louver core, leaving the corridor side of the frame free of visible fasteners.
The SDL-V90 louver is offered in a mineral bronze powder coat finish. Custom finishes, such as black or white, are also available. Other customizable options include a corrosion-resistance finish, and insect and bird screens.
| DOOR CUT-OUT | |||
| WIDTH (inches) |
X | HEIGHT (inches) |
Mineral Bronze Powder Coat |
| 12 | X | 8 | X |
| 12 | X | 12 | X |
| 12 | X | 18 | X |
| 18 | X | 12 | X |
| 18 | X | 18 | X |
| 20 | X | 12 | X |
| 24 | X | 12 | X |
| 24 | X | 18 | X |
| 24 | X | 24 | X |
Standard Sizes
SDL-V90 (width) X (height)
Custom Size
SDL-V90 (width) X (height)
(dimensions are door cut-out size, unless specified otherwise)
